GDES-200D05
Airborne 2-axis Multi Sensors Observation Pod
FEATURES
-
• High stability accuracy up to 0.05mrad

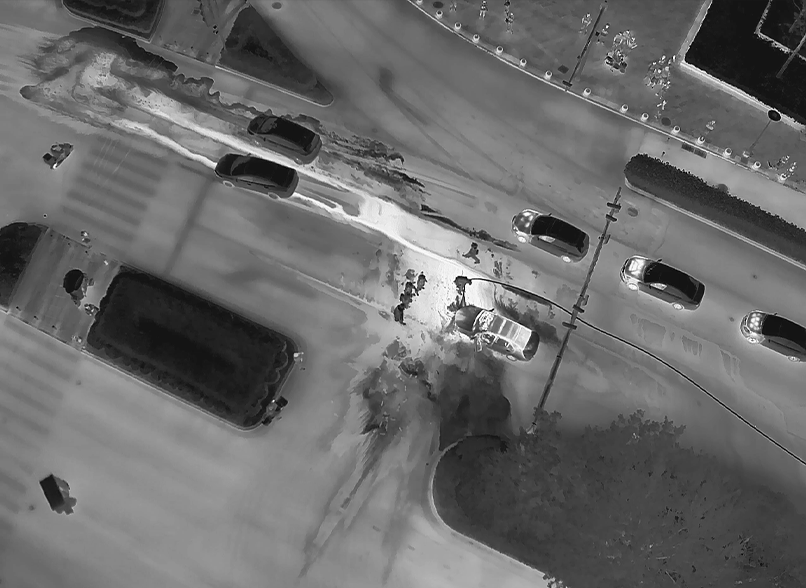

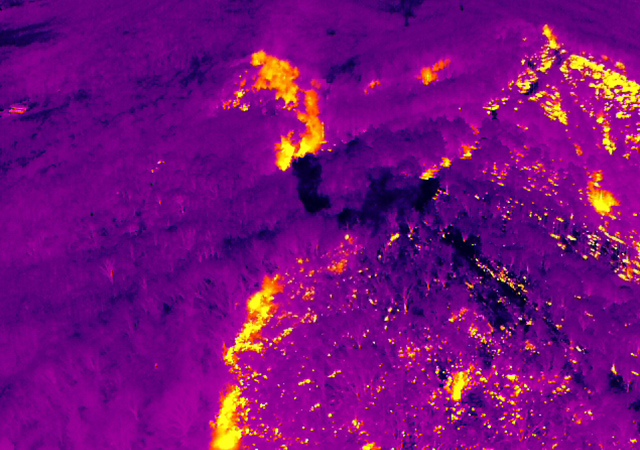

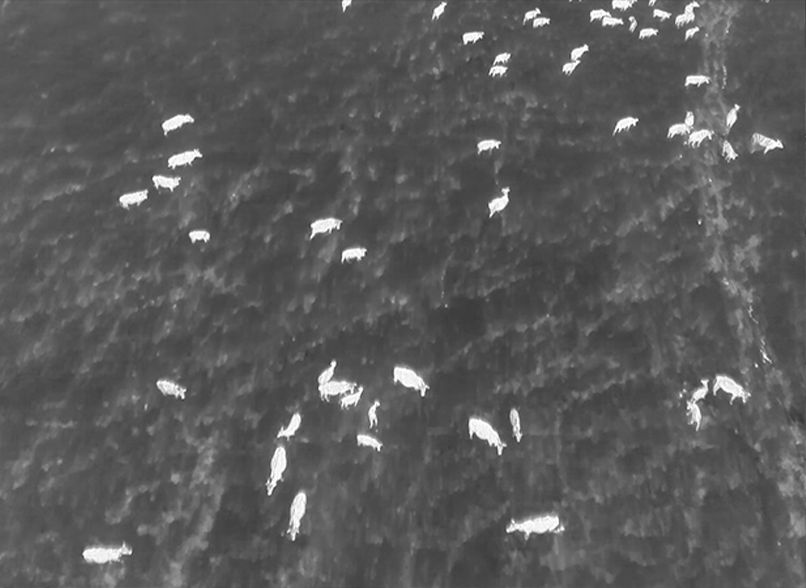

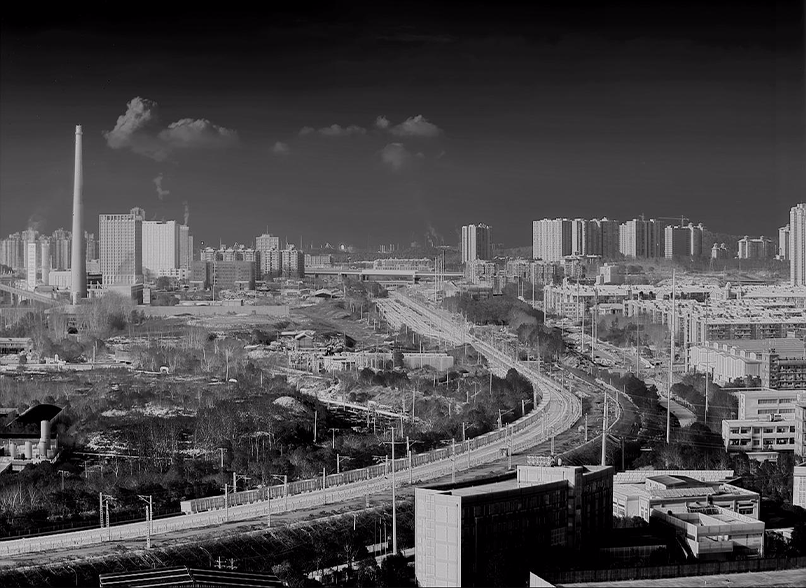

• Support real-time output of thermal image and visible image -
• With inertial image stabilization, locking, scanning functions
• With airborne information for target positioning
DESCRIPTION

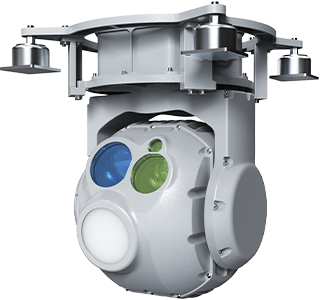

The GDES-200D05 airborne 2-axis multi sensors observation pod integrates high precision gyro stabilized platform, cooled MWIR infrared camera, high-definition visual camera and laser rangefinder.
It is mainly designed for small helicopter, medium-sized rotor unmanned aerial vehicle (UAV) and can realize target detection, recognition and precise positioning through the high performance image sensor technology and high-precision stability control technology. The pod can also cooperate with the airborne system to complete auxiliary navigation, reconnaissance and surveillance, target positioning, geographic guidance and other tasks.
APPLICATIONS
Remote Sensing Monitoring
Search & Tracking System
Reconnaissance System
SPECIFICATIONS
| Model | GDES-200D05 |
| Infrared Camera | |
| Detector Type | Cooled MWIR Focal Plane Array |
| Resolution | 640x512 |
| Pixel Pitch | 15μm |
| Horizontal FOV | 2.29°×1.83°~22.62°×18.18° |
| Focal Length | 24~240mm, Continuous Zoom |
| Visual Camera | |
| Resolution | 1920×1080 |
| Focal Length | 24~120mm/4.7~141mm Continuous Zoom |
| FOV | 2.75°×1.55°~13.7°×7.72°/2.3°~60° |
| Laser | |
| Wavelength | 1.54μm (Safe for human eyes) |
| Maximum Range | 6KM |
| LRF Accuracy | ±2m |
| Servo System | |
| Motion Range | 360° Continuous Azimuth, -120 ~+10° Elevation |
| Stabilization Accuracy | ≤0.05mrad (RMS) |
| Angle Measurement Accuracy | ≤1mrad |
| Maximum Angular Velocity | ≥60°/s |
| Electrical Interface | |
| Working Voltage | DC28V (Support 18~36V Input) |
| Power Consumption | ≤100W (Average) |
| Video Interface | Ethernet |
| Physical Characteristics | |
| Weight | ≤5.5KG |
| Dimension | ≤200mm×300mm (OD×H） |
